An instance of the class Section stores the section properties (area, inertia, position of neutral axis). More...

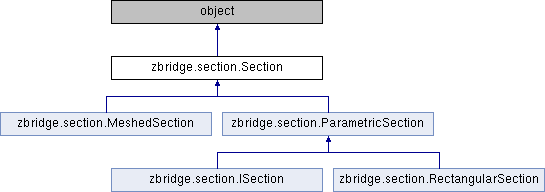

Inheritance diagram for zbridge.section.Section:
Public Member Functions | |
| def | __init__ (self) |
| The constructor. More... | |
| def | ComputeProperties (self) |
| Computing section properties by summing the properties of the (currently active) components. More... | |
Public Attributes | |
| area | |
| Ix | |
| Iy | |
| Iz | |
| y0 | |
| z0 | |
| nComponents | |
| components | |
Detailed Description
An instance of the class Section stores the section properties (area, inertia, position of neutral axis).
A Section is composed of components, which can appear/disappear, have different material properties etc.
Constructor & Destructor Documentation
§ __init__()
| def zbridge.section.Section.__init__ | ( | self | ) |
The constructor.
- Parameters
-
area The surface area of the Section Ix Moment of inertia with respect to x-axis (torsion) Iy Moment of inertia with respect to y-axis Iz Moment of inertia with respect to z-axis y0 Offset of neutral axis with respect to a reference point (in general the lateral direction) z0 Offset of neutral axis with respect to a reference point (in general pointing upward) nComponents Number of components (minimum 1) components A list of instances of Component
Member Function Documentation
§ ComputeProperties()
| def zbridge.section.Section.ComputeProperties | ( | self | ) |
Computing section properties by summing the properties of the (currently active) components.
The documentation for this class was generated from the following file:
- D:/Mandats/M1031_ZBridge/technique/zbridge/zbridge/section.py
