Discriminibility Code and Testing in Python¶
Availability:¶
The scripts explored in this notebook are available in a pypi egg package. Simply use sudo easy_install py_disc to get it, then import with from py_disc.disc import D, naive_D

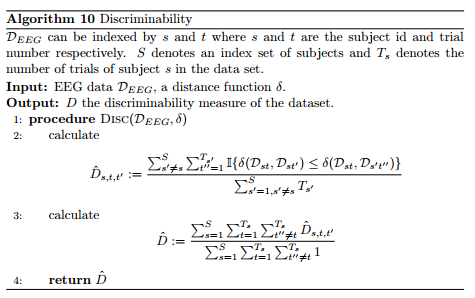

Pseudocode¶
Real Code¶
In [5]:
import numpy as np
import pandas as pd
import timeit
from py_disc.disc import D, naive_D
Experiment 1 design¶
We will use the following data and metric
In [6]:
d = np.array([[1], [2], [1], [1]])
subjects = np.array(['A', 'A', 'B', 'B'])
df = pd.DataFrame(data = d, index = subjects)
df.index.name = 'Subject'
df.columns = ['Value']
print 'Experiment 1 Data'
df
Out[6]:
Simple experiment metric: $ \delta(x, y) = \vert x - y \vert $
Expected answer is 0.25.
Experiment 2 design¶
In [7]:
print 'Optimized Algorithm'
%timeit disc, info = D(d, subjects, lambda x, y: np.abs(x[0] - y[0]))
disc, info = D(d, subjects, lambda x, y: np.abs(x[0] - y[0]))
print info
print
print 'Discriminibility:', disc
print '___________________________________________________________'
print
print 'Naive Algorithm'
%timeit disc, info = naive_D(d, subjects, lambda x, y: np.abs(x[0] - y[0]))
disc, info = naive_D(d, subjects, lambda x, y: np.abs(x[0] - y[0]))
print info
print
print 'Discriminibility:', disc
Experiment 2 Design¶
We will place points on a plane as follows:
In [8]:
import matplotlib.pyplot as plt
d = np.array([[-1, .5], [-1, -.5], [1, .5], [1, -.5], [-1, 0], [1, 0]])
subjects = np.array(['A', 'A', 'B', 'B', 'C', 'C'])
plt.scatter(d[subjects == 'A'][:, 0], d[subjects == 'A'][:, 1],
color = 'red', label = 'A')
plt.scatter(d[subjects == 'B'][:, 0], d[subjects == 'B'][:, 1],
color = 'blue', label = 'B')
plt.scatter(d[subjects == 'C'][:, 0], d[subjects == 'C'][:, 1],
color = 'green', label = 'C')
plt.xlabel("x")
plt.ylabel("y")
plt.title('Experiment 2')
plt.legend(loc='upper center')
plt.show()
The metric we will use is the $l_2$ norm e.g. $\delta(\vec{x}, \vec{y}) = \vert\vert \vec{x} - \vec{y} \vert\vert_{2}^{2}$
We expect the answer to be $\frac{2}{3}$
Experiment 2 Test¶
In [9]:
print 'Optimized Algorithm'
%timeit disc, info = D(d, subjects, lambda x, y: np.linalg.norm(x - y))
disc, info = D(d, subjects, lambda x, y: np.linalg.norm(x - y))
print 'Discriminibility:', disc
print info
print '_______________________________________________________________'
print
print 'Naive Algorithm'
% timeit disc2, info = naive_D(d, subjects, lambda x, y: np.linalg.norm(x - y))
disc2, info = naive_D(d, subjects, lambda x, y: np.linalg.norm(x - y))
print 'Discriminibility', disc2
print info
Experiment 3 Design¶
In [79]:
import seaborn as sns
n = 1000
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
df = pd.DataFrame.from_dict({'Trial': d, 'Subject': subjects})
eg., we take n samples of a random variable $A \sim uni(0, 2)$ and n of a random variable $B \sim uni(1, 3)$.
We can figure out what the true answer should be using monte carlo with the samples $A \sim uni(0, 2), B \sim uni(0, 2), C \sim uni(1, 3)$ We can use monte carlo to figure out what should be $P(\vert A - B \vert < \vert A - C \vert$
In [80]:
sns.violinplot(x = 'Subject', y = 'Trial', data = df, split = True, bw = .1)
plt.title("Example for n = 1000 for each subject")
plt.show()
print 'Answer should be: ',
a = np.random.uniform(0, 2, 1000000)
b = np.random.uniform(0, 2, 1000000)
c = np.random.uniform(1, 3, 1000000)
ans = np.mean(np.abs(a - b) < np.abs(a - c))
print ans
Experiment 3 test - 100 experiments of 2 subjects with 15 trials¶
In [103]:
n = 15
print 'Naive Algorithm Time'
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
%timeit -n 100 disc, info = D(d, subjects, lambda x, y: np.linalg.norm(x - y))
print
print 'Optimized Algorithm Time'
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
%timeit -n 100 disc, info = naive_D(d, subjects, lambda x, y: np.linalg.norm(x - y))
results_naive = []
results_opti = []
for i in range(100):
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
disc, info = D(d, subjects, lambda x, y: np.linalg.norm(x - y))
results_opti.append(disc)
disc, info = naive_D(d, subjects, lambda x, y: np.linalg.norm(x - y))
results_naive.append(disc)
sns.distplot(results_naive, label='Naive')
sns.distplot(results_opti, label='Opti')
plt.vlines(ans, 0, 8)
plt.xlabel('discriminibility')
plt.ylabel('density')
plt.legend()
plt.show()
Complexity¶
The naive implementation should be $O(S^2T^3)$ where $S$ is the number of subjects and $T$ is the number of trials. We claim that the second implementation is better since it is $)(S^2T^2)$. We will now show this to be true empirically.
In [90]:
for n in np.arange(10, 200, 10):
print 'Optimized Algorithm Time,', n, 'Trials'
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
%timeit disc, info = D(d, subjects, lambda x, y: np.linalg.norm(x - y))
print
print 'Naive Algorithm Time,', n, 'Trials'
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
%timeit disc, info = naive_D(d, subjects, lambda x, y: np.linalg.norm(x - y))
print
print '____________________________________________________________________'
In [94]:
trials = np.arange(10, 160, 10)
opti = [7.56, 33.1, 81.8, 166, 280, 454, 656, 908, 1220, 1560, 2010, 2500, 3120, 3880, 4650]
naive = [12, 74.3, 239, 510, 969, 1630, 2560, 3610, 5120, 7120, 9240, 12100, 15100, 18700, 23000]
In [97]:
plt.plot(trials, opti, label='Optimized Algorithm')
plt.plot(trials, naive, label='Naive Algorithm')
plt.xlabel('Number of Trials')
plt.ylabel('Milliseconds taken for Discriminibility Calculation')
plt.title('Discriminibility running time, optimized algorithm vs. naive algorithm.')
plt.show()
Experiment 4 - (same as experiment 3, but with n=150 trials)¶
In [105]:
n = 150
results = []
for i in range(100):
d = np.hstack([np.random.uniform(0, 2, n), np.random.uniform(1, 3, n)])
subjects = np.array(['A'] * n + ['B'] * n)
disc, info = D(d, subjects, lambda x, y: np.linalg.norm(x - y))
results.append(disc)
sns.distplot(results)
plt.vlines(ans, 0, 20)
plt.xlabel('discriminibility')
plt.ylabel('density')
plt.show()
