setup Package

setup Package

This package holds methods and modules to define proper simulation setup. It includes boundary conditions (bc), mesh, CAD and model inputs.

bc Module

class transat.setup.bc.BC(raw)

Bases: object

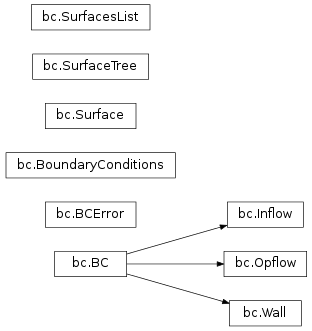

Generic boundary condition object Different types of boundary conditions are derived from this class:

write()

exception transat.setup.bc.BCError(msg, code=2)

Bases: exceptions.Exception

Base class for exceptions in Boundary Conditions

Parameters:

• msg (str) – Human readable string describing the exception.
• code (int, optional) – Error code, defaults to 2.

msg

str

Human readable string describing the exception.

code

int

Exception error code.

class transat.setup.bc.BoundaryConditions(stt_data, mesher)

Bases: object

Stores all boundary conditions

bc_file

str

Input file of TransAT containing the boundary conditions, generated by the GUI

bcs

list of BC

All the boundary condition objects

create_surfaces_tree()

get_bc(name)

Get a boundary condition object from its name

Parameters:name (str) – Name of the boundary, as labelled in TransAT GUI Returns:Boundary condition object Return type:BC

get_bc_names()

get_surface_tree()

get_surfaces_from_mesher()

write(stt_file)

write_boundaries()

write_surfaces()

class transat.setup.bc.Inflow(raw)

Bases: transat.setup.bc.BC

Inflow Boundary Condition

set_coupling(coupling)

set_phase_velocities(phase, velocity, volume_fraction)

set_temperature(temperature)

set_velocities(velocity)

set_volumeflowrate(volumeflowrate)

class transat.setup.bc.Opflow(raw)

Bases: transat.setup.bc.BC

Output pressure Boundary Condition

set_coupling(coupling)

set_pressure(pressure)

class transat.setup.bc.Surface

Bases: object

A Surface is an ensemble of rectangles that:

• are connected together
• have the same orientation

bc

str

Boundary condition name. Should correspond to one of BoundaryConditions.get_bc_names()

id

int

surface_id

int

rectangles

list

set_bc_key(bc_key)

set_id(id)

set_rectangles(rectangles)

set_surface_id(surface_id)

unwrap(data)

write()

Returns:data that can be inserted in SURFACE_TREE section of the stt file Return type:list

class transat.setup.bc.SurfaceTree(surfaces)

Bases: object

A SurfaceTree is collection of surfaces. The order in which the tree is sorted matters for the definition of the boundaries.

surfaces

list

Items in surfaces are object of type Surface

get_all_surfaces()

get_surface_with_normal(normal)

get_surface_with_point(point)

sort()

class transat.setup.bc.SurfacesList(surfaces)

Bases: object

for_dir(dir)

for_value(value)

get_all()

get_surface_with_normal(axis)

get_surface_with_point(point)

get_values()

minmax(name)

set_bc_name(bc_name)

class transat.setup.bc.Wall(name, raw)

Bases: transat.setup.bc.BC

Wall Boundary Condition

set_coupling(coupling)

set_temperature(temperature)

cad Module

class transat.setup.cad.BoundBox(xmin, xmax, ymin, ymax, zmin, zmax)

Bases: object

contains(edge)

contains_point(point)

equal(bbox)

from_points_to_bbox(points)

get_intersection(bbox)

get_points()

make_points_unique(points)

remove(bbox)

unwrap()

class transat.setup.cad.CAD(freecad_path)

Bases: object

create_cylinder(cylinder, path='', name='cylinder.stl')

load_freecad()

make_circle(radius, o, d)

make_pipe(wire, circle, filename)

make_wire(segments)

class transat.setup.cad.Edge(p1, p2)

Bases: object

distances_to_surface(surface, x0)

get_dir_vector()

get_intersection_point(surface)

has_intersection_with_surface(surface)

is_aligned()

is_collinear_with(edge)

is_equal(edge)

is_normal_to_surface(surface)

class transat.setup.cad.Network(cad, pipes)

create(path)

get_blocks()

get_pipes_name()

remove_intersection(bboxes, bbox)

remove_intersections(bboxes)

class transat.setup.cad.Pipe(name, radius, junctions=['open', 'open'])

Bases: transat.setup.cad.CAD

add_point(point=[], radius=None)

create(cad, path)

get_bounding_boxes()

get_inlet_point()

get_name()

get_outlet_point()

exception transat.setup.cad.PointsAreTheSameError(p0, p1)

Bases: exceptions.Exception

class transat.setup.cad.Surface(p1, p2, p3, p4)

Bases: object

contains(point)

get_normal()

get_points()

transat.setup.cad.load_module(freecad_path)

ic Module

class transat.setup.ic.InitialConditions(ic_file)

Bases: object

input Module

class transat.setup.input.ControlSection(data)

Bases: transat.setup.input.InputSection

set_final_time(time)

set_maxit(maxit)

set_maxit_max(maxit)

set_nbr_timestep(timestep)

write()

class transat.setup.input.Input(path)

Bases: object

get_control_section()

get_flow_conditions()

get_phases()

get_section(name, lines)

get_sections_names(lines)

parse()

set_final_time(time)

set_maxit(maxit)

set_maxit_max(maxit)

set_nbr_timestep(timestep)

write()

class transat.setup.input.InputSection(data)

Bases: object

get_vector_id(key)

get_vector_name(key)

is_vector(key)

parse(data)

write()

class transat.setup.input.Phase(data, index)

Bases: object

get_density()

get_index()

get_name()

set_density(rho)

set_name(name)

set_viscosity(visc)

class transat.setup.input.PhaseSection(data)

Bases: transat.setup.input.InputSection

get_phase(name)

get_phase_names()

update()

write()

ist Module

class transat.setup.ist.IST(name, raw)

Bases: object

change_value(key, value)

class transat.setup.ist.ImmersedSurfaces(stt_data)

Bases: object

add(names)

get(name)

get_names()

read_objects()

write(stt_file)

mesh Module

class transat.setup.mesh.Block(stt_data=None, dimensions=None)

Bases: object

get_lengths()

get_rectangles()

get_volume()

make_2D(axis, value)

set_dimensions(xmin, xmax, ymin, ymax, zmin, zmax)

set_id(id)

split()

unwrap(stt_data)

write()

class transat.setup.mesh.Mesher(stt_data)

Bases: object

add_block(block)

get_all_blocks_rectangles()

get_center(dir)

get_max(dir)

get_min(dir)

get_number_of_blocks()

get_rectangles()

set_2D(axis1, axis2, offset=1e-07)

set_blocks(bboxes)

set_dx(dx)

set_grid_spacing(axis, dx)

set_number_of_cells(nx, ny, nz)

set_ratios(rx, ry, rz)

sort_surfaces_in_dict(surfaces)

split_blocks()

static split_surfaces(surfaces)

write(stt_file)

class transat.setup.mesh.Rectangle(normal, dimensions, value, orientiation)

Bases: object

contains(surface)

contains_point(point)

equal(surface)

get_1d_intersection(surface, dir)

get_nine_surfaces(values)

has_same_dimensions(dimensions)

intersection(surface)

is_connected(surface)

remove(surfaces, surface)

class transat.setup.mesh.RectangleFamily(father)

Bases: object

find(rectangles)

get_family_picture()

setup Module

class transat.setup.setup.Setup(path)

Bases: object

parse_stt()

write()

stt_helper_functions Module

transat.setup.stt_helper_functions.add_section(raw, stt_file)

transat.setup.stt_helper_functions.add_section_headers(data, section, extra='')

transat.setup.stt_helper_functions.auto_parser(lines)

transat.setup.stt_helper_functions.bbmr_parser(lines)

transat.setup.stt_helper_functions.change_attribute_value(key, value, data)

transat.setup.stt_helper_functions.dict2array(data)

transat.setup.stt_helper_functions.extract_attribute(data)

transat.setup.stt_helper_functions.extract_file(data)

transat.setup.stt_helper_functions.find_all_sections(data)

transat.setup.stt_helper_functions.find_first_section_occurence(lines, sections)

transat.setup.stt_helper_functions.get_attribute_value(row, keyword)

transat.setup.stt_helper_functions.get_grid_sections_and_remove(lines)

transat.setup.stt_helper_functions.get_section(keyword, stt_file=None, data=None)

transat.setup.stt_helper_functions.parser(stt_file)

transat.setup.stt_helper_functions.remove_filename_from_file(data)

transat.setup.stt_helper_functions.remove_grid_sections(lines)

transat.setup.stt_helper_functions.remove_section(keyword, stt_file=None, data=None)

transat.setup.stt_helper_functions.remove_section_headers(data)

transat.setup.stt_helper_functions.write_section(section, section_data, stt_file)
