Making target creation simple is one of the central goals of ScatPy. Target class definitions reside in the module targets. One important distinction between the way that targets in ScatPy behave vs. DDSCAT is that in ScatPy targets always have a defined physical size (either through aeff or physical dimensions). Different size targets can be computed in one run by scaling the target through a range of values. More on this in the section on Settings.
An empty call to targets.Target returns a default target.
>>> from ScatPy import *
>>> t = targets.Target()
>>> print t
<ScatPy.targets.Target at 0x13fa2fd50>
>>> t.directive
'RCTGLPRSM'
A generic target, one of the class targets.Target, is the type that most closely mimics the internal DDSCAT representation. It is created by simply specifying the same four pieces of information used by DDSCAT: a shape directive, the shape parameters, the composition, and the aeff.:
>>> t = targets.Target('TRNGLPRSM', (10, 1, 1, 10), 'Au_evap', 0.100)
>>> print t
<ScatPy.targets.Target object at 0x13fa2ff50>
Builtin targets are ones that correspond to the standard target types defined by DDSCAT internally. Dedicated classes exist for these target types with the same name as the corresponding DDSCAT directive. An important feature of these targets is that they work in physical units, so again, targets have well defined sizes.
The following creates a prolate sphereoid with total length 1.0um, and a rod with spherical endcaps with the same overall length.
>>> elps = targets.ELLIPSOID((0.5, 0.2, 0.2), 'Au_evap')
>>> rod = targets.CYLNDRCAP(0.8, 0.1)
In DDSCAT the physical size of the target is determined by the number of dipoles and a_eff. The dipole spacing is inferred from these two. ScatPy works the other way around: target geometry is defined according to physical dimensions, and the effective radius is calculated based on those dimensions and the dipole spacing. So, for example:
>>> sphere = targets.ELLIPSOID((1,1,1), d=0.010)
>>> sphere.d
0.01
>>> sphere.aeff
0.9999999837036163
>>> sphere.N
4188790
>>> sphere.d = 0.001 # Change the target's dipole spacing
>>> sphere.aeff # No change to aeff...
0.9999999999374206
>>> sphere.N # but the number of dipoles has increased
4188790204
Custom targets correspond to the FROM_FILE target directive in DDSCAT which reads the geometry from a shape.dat file supplied by the user. ScatPy endeavours to simplify the creation of such targets.
The simplest method to build a custom shape is to use the fromfunction method of FROM_FILE. To do this, first create a function that will accept arrays of the x,y,z pixels in the target volume (in units of um), and returns an integer corresponding to composition (1 for material 1, 0 for vacuum). It can accept further optional keyword arguments. Then call FROM_FILE.fromfunction with parameters corresponding to the generator function, and two points representing the corners of the volume within which you wish to evaluate the function. See the documentation for numpy.fromfunction for further details on how to write generating functions.:
def torus(x, y, z, R=0.5, r=0.1):
"""Build a torus"""
rsq = (R - np.sqrt(x**2+y**2))**2 + z**2
return np.where(rsq<r**2, 1, 0)
t = targets.FROM_FILE.fromfunction(torus, (-1,-1,-1), (1,1,1))

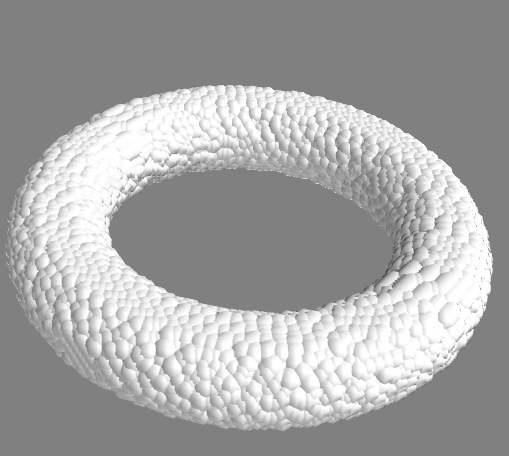

If mayavi is installed custom targets can be viewed using the show method:
t.show()

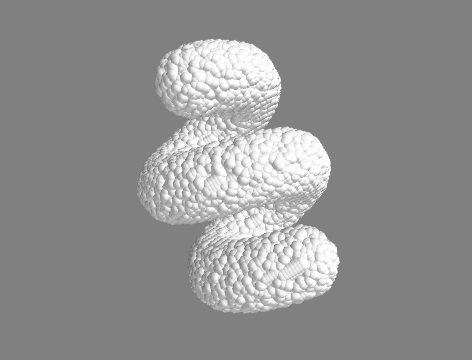

Custom targets are subclassed from FROM_FILE and provide a specialized interface to a unique target geometry. For instance ScatPy includes a custom target for creating helices, based on their height, pitch, and major and minor radii: major_r and minor_r.:
helix = targets.Helix(1.0, 0.5, 0.3, 0.15)
helix.show()

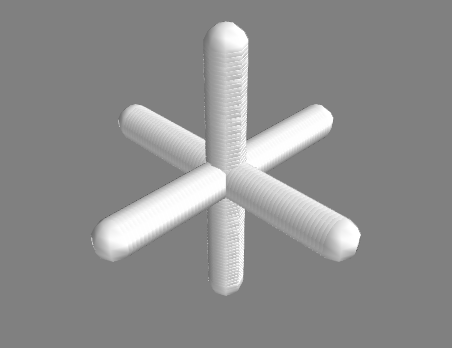

It is straightforward to write your own custom class derived from FROM_FILE. The heart of such a class is a 3D grid representing possible dipole positions. The value at each grid point indicates the material (a 3-tuple for each point can be used for anisotropic compositions). The class must translate between the physical units used to define the object and the dipole units used to define the grid. Here’s a simple example that creates a class for building three crossing wires resembling toy jacks:
class Jack(targets.FROM_FILE):
"""Three equal length wires arranged at right angles"""
def __init__(self, length, *args, **kwargs):
targets.FROM_FILE.__init__(self, *args, **kwargs)
self.description='A three wire jack'
d_length = int(length/self.d)
self.grid = np.zeros((d_length,)*3, dtype=int)
mid = int(d_length/2)
self.grid[:,mid,mid]=1
self.grid[mid,mid,:]=1
self.grid[mid,:,mid]=1
target = Jack(1.0)
target.show()
Targets that are repeat in 1 or 2 dimensions derive from the class targets.Periodic. Periodic targets are used the same way as isolated ones, but have an additional required parameter period which is a 2D vector specifying the repeat distance in the x and y directions of the target frame in units of um. For example the following makes an array of 0.5um cubes on a 1um 2D grid:
>>> grid = targets.RCTGL_PBC((0.5, 0.5, 0.5), (1.0, 1.0))
>>> print grid.save_str()
**** Target Geometry and Composition ****
RCTGLPRSM
33 33 33 66.66666666666667 66.66666666666667
1
'/Users/andrewmark/Documents/Analysis/ddscat/mp/Au_Palik.txt'
To make a semi-infinite array of objects simply leave one of the components of period equal to zero. This will make an infinite line of 200nm tall by 50nm diameter cylinders spaced by 500nm in the y direction:
>>> line = targets.CYLNDRPBC(0.2, 0.05, 1, (0,0.5))
>>> print line.save_str()
**** Target Geometry and Composition ****
CYLINDER1
13 7 1 0.0 33.333333333333336
1
'/Users/andrewmark/Documents/Analysis/ddscat/mp/Au_Palik.txt'
Any isolated target which has a corresponding periodic version built into DDSCAT can be converted into that periodic version with the method make_periodic(period). In essence, you first create the target unit cell (TUC) and then tile that unit cell by the specififed unit vector. So the previous array of cylinders could have been created with
>>> cyl = targets.CYLINDER(0.2, 0.05, 1)
>>> line = cyl.make_periodic((0, 0.5))
print line.save_str()
**** Target Geometry and Composition ****
CYLINDER1
13 7 1 0.0 33.333333333333336
1
'/Users/andrewmark/Documents/Analysis/ddscat/mp/Au_Palik.txt'
This is particularly helpful for creating arrays of arbitrarily shaped objects since it allows you to first develop the abitrarily shaped target within the TUC, either with FROM_FILE.fromfunction or through a custom class, and then repeat that TUC on the desired grid.
>>> helix = ScatPy.targets.Helix(0.2, 0.1, 0.05, 0.02)
Generating Helix...
Done constructing sweep path...
>>> helix_array = helix.make_periodic((0.1, 0.1))
>>> print helix_array.save_str()
**** Target Geometry and Composition ****
FROM_FILE
6.666666666666667 6.666666666666667 'shape.dat'
1
'/Users/andrewmark/Documents/Analysis/ddscat/mp/Au_Palik.txt'
Targets previously saved to disk can be loaded using Target.fromfile(fname) where fname is the name of the ddscat.par which includes the desired target. If a bulitin class corresponding to the directive exists then fromfile will delegate and return an instance of that class. If no matching class is found then it returns a generic Target.
>>> t = targets.Target.fromfile('./2372/ddscat.par')
>>> print t
<ScatPy.targets.Iso_FROM_FILE object at 0x11df95b90>>>>
>>> t.N
13290
>>> t.aeff
0.29112538896800289
Future versions of ScatPy aim to implement simple geometric transformations for targets like scale, translate, rotate and reflect. It is also planned to add the capability for boolean operations on targets. This would, for instance, allow two seperately created targets to be merged together, or subtracted from one another.
